Product Overview

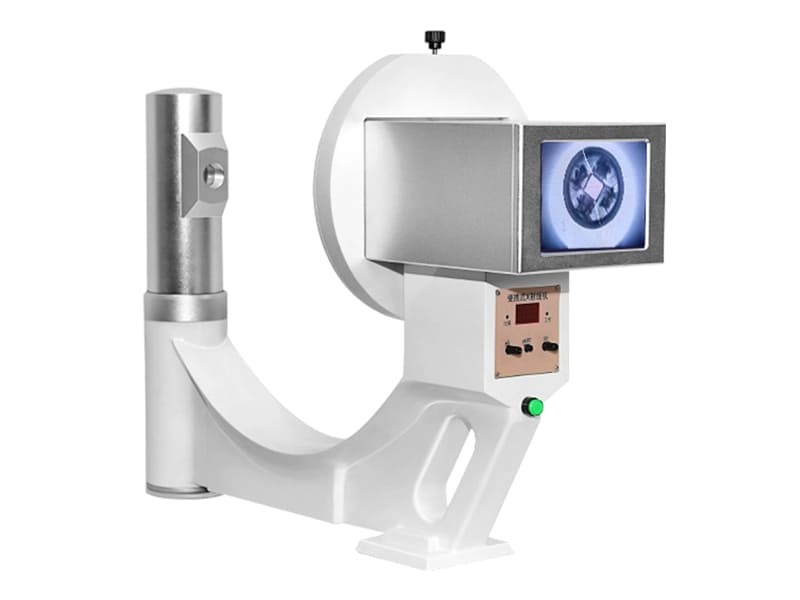

The HM-G75Y from HM Instruments is a portable X-ray inspection instrument for examining coins and related cultural objects. Differences in X-ray absorption reveal internal structures and details beneath corrosion layers to support conservation and expert examination.
Key Features
- Real-time viewing supports examination without a darkroom.
- A 3.6 kg host supports portable inspection arrangements.
- Images can help identify cracks, joins, soldering and alterations.
Applications
Use in archaeological study, coin conservation, restoration assessment and examination of suspected modifications. Interpret radiographs alongside other evidence and specialist judgment; an internal image alone does not establish authenticity or age.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output image size | 100 × 76 mm |
| X-ray tube voltage | 45–90 kV |
| Tube current | 0.25–0.5 mA |
| Resolution | >4 line pairs/mm |
| Host weight | 3.6 kg |
| Power consumption | 200 W |
| Supply | 220 V, 50 Hz |
Operation and Selection
Tell the sales representative the object size and examination task to discuss positioning and configuration. Operate under the applicable radiation-protection requirements, with trained personnel, controlled access and the protection required for the installation.
Product Enquiries
Tell our sales representative your sample material, target inspection or analytical task and configuration requirements for product enquiries and coordination of service requests.
Sales Contact: Arthur
Email: Arthur@hmdzkj.cn
Tel / WhatsApp / WeChat: +86 18353666151
