Product Overview

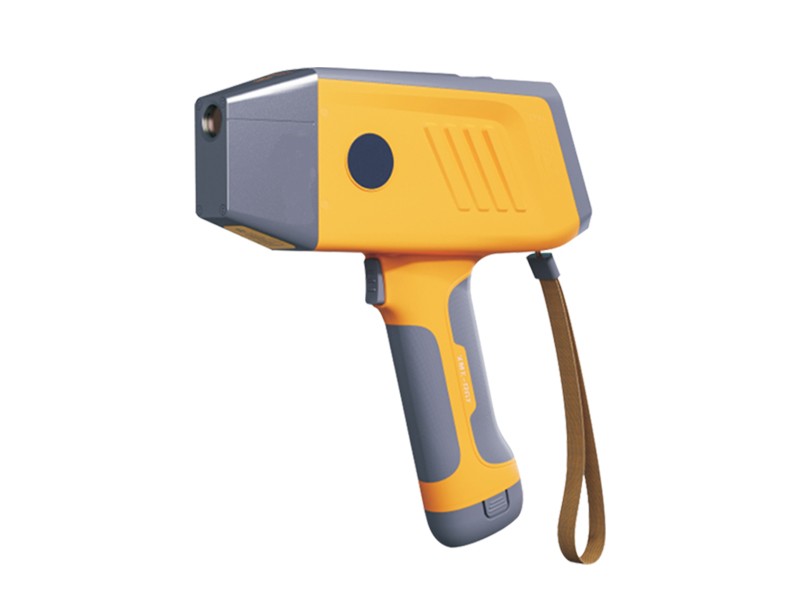

The HM-SXY ore-analysis configuration from HM Instruments is a handheld X-ray fluorescence analyzer for field elemental screening. It combines a variable-voltage X-ray source with a Si-PIN detector and on-instrument spectral analysis to support rapid examination of suitable geological samples.
Key Features
- Single-trigger operation and automatic calibration support field screening.
- A 3.5-inch TFT touchscreen displays results and spectra.
- An 8 GB storage card holds at least 40,000 sets of data and spectra.
- Phone-network, hotspot, Wi-Fi and app-based transfer support sharing of field records.
Applications
Use in mine mapping, grade control, core examination, vein exploration, tailings assessment and ore-trading screening. Select calibration and measurement settings for the mineral matrix and target elements. Field screening supports sample selection and follow-up laboratory work where confirmation is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Technique | Handheld X-ray fluorescence |
| X-ray source voltage | 50 kV, variable |
| Detector | Si-PIN; resolution ≤180 eV |
| Detector cooling | Peltier semiconductor cooling to −35 °C |
| Display | 3.5-inch TFT touchscreen |
| Storage | 8 GB; ≥40,000 data and spectrum sets |
| Basic instrument weight | ≤1.4 kg |
| Dimensions | 300 × 90 × 220 mm |
| Operating system | Microsoft Windows CE |
| Operating temperature | −20 to +40 °C |
| Relative humidity | <80% RH |
Operation and Selection
This page describes the ore-analysis configuration. Specify the mineral matrix and required element list when requesting a configuration. Use the prescribed trigger, sample positioning and radiation-protection procedures; follow the instrument manual and local requirements for handheld X-ray equipment.
Product Enquiries
Tell our sales representative your sample material, target inspection or analytical task and configuration requirements for product enquiries and coordination of service requests.
Sales Contact: Kyra
Email: Kyra@hmdzkj.cn
Tel / WhatsApp / WeChat: +86 13792642016
