Product Overview

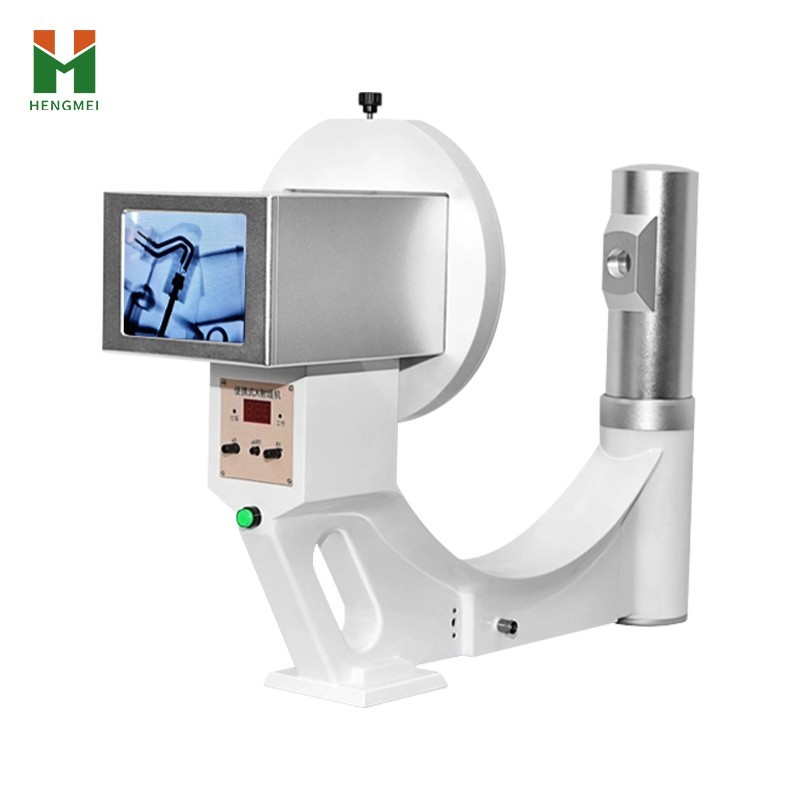

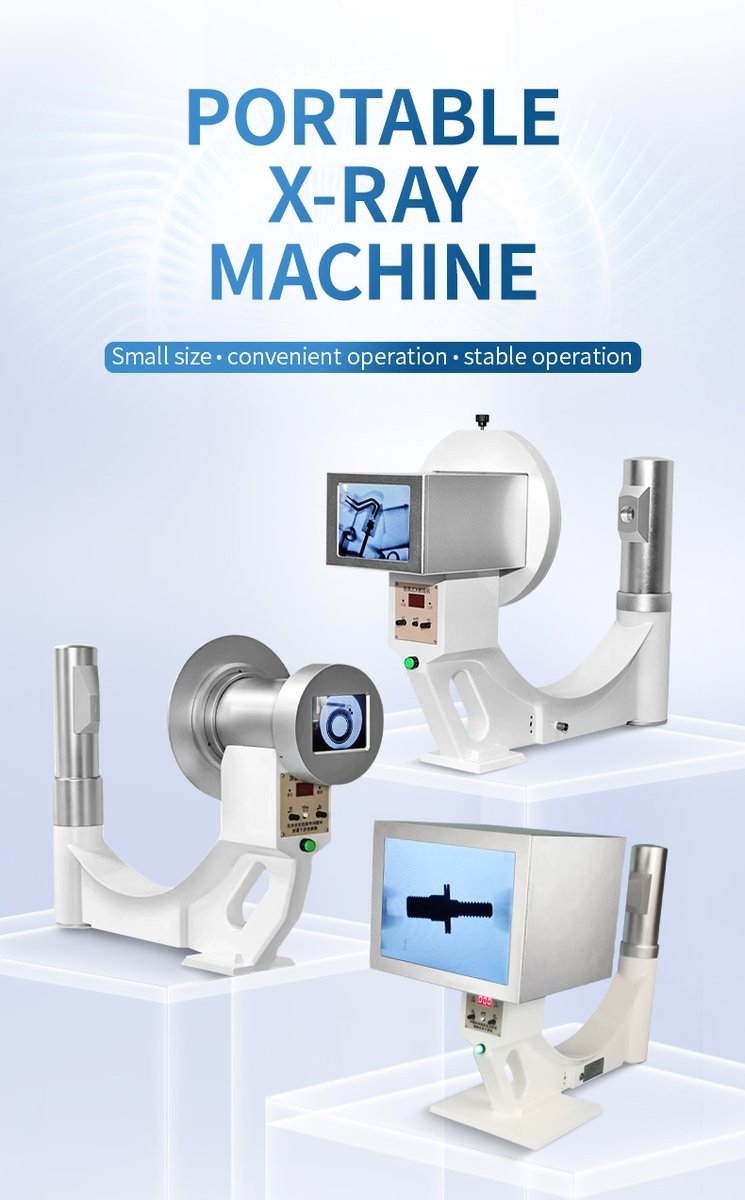

The HM-50Y from HM Instruments is a portable CCD-based X-ray inspection system for viewing internal structures in suitable workpieces. It provides real-time images without a darkroom and can connect to a computer for image printing.
Key Features

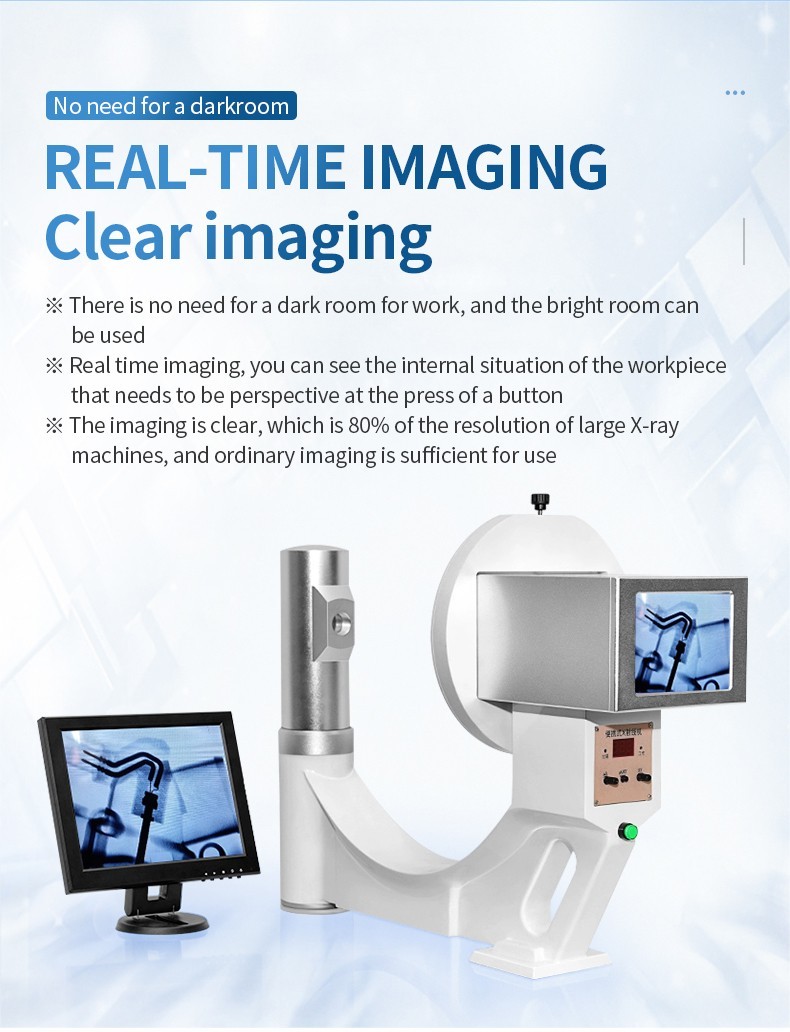

- Real-time CCD imaging supports immediate viewing during an inspection.

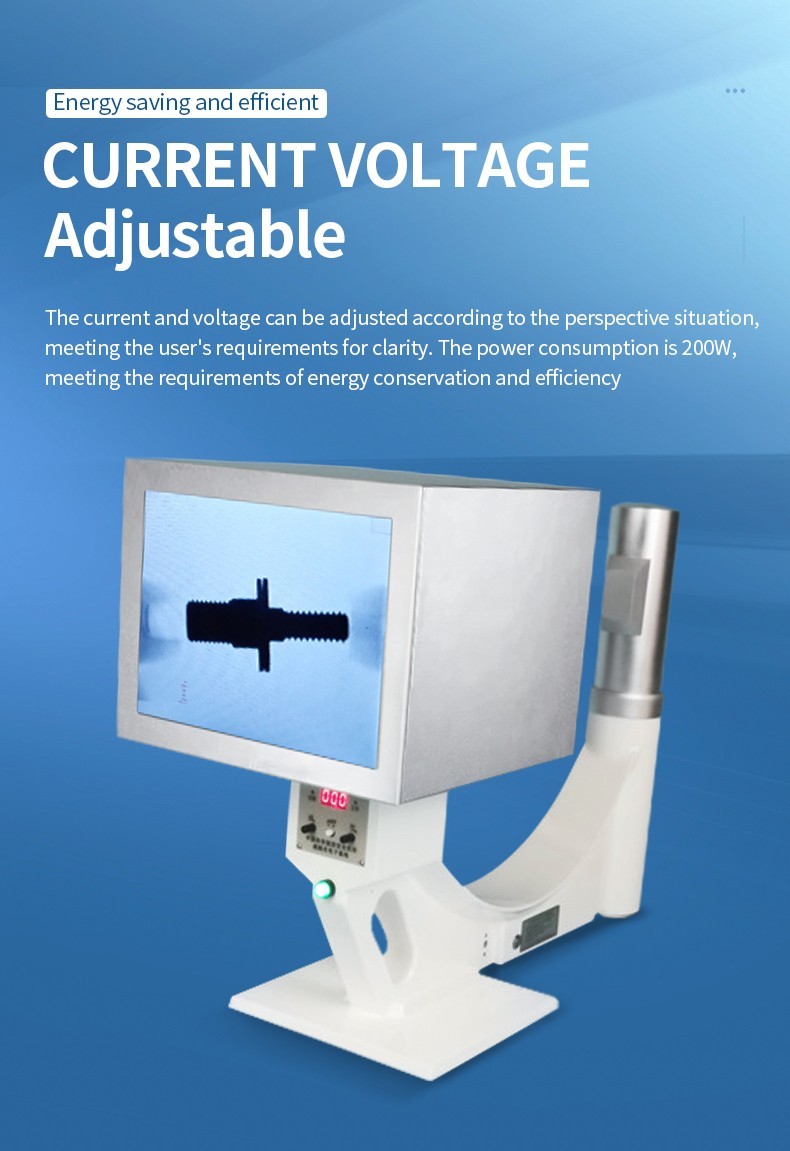

- Adjustable current and voltage allow imaging settings to be matched to the workpiece.
- Bright-room viewing avoids the need to arrange a photographic darkroom.

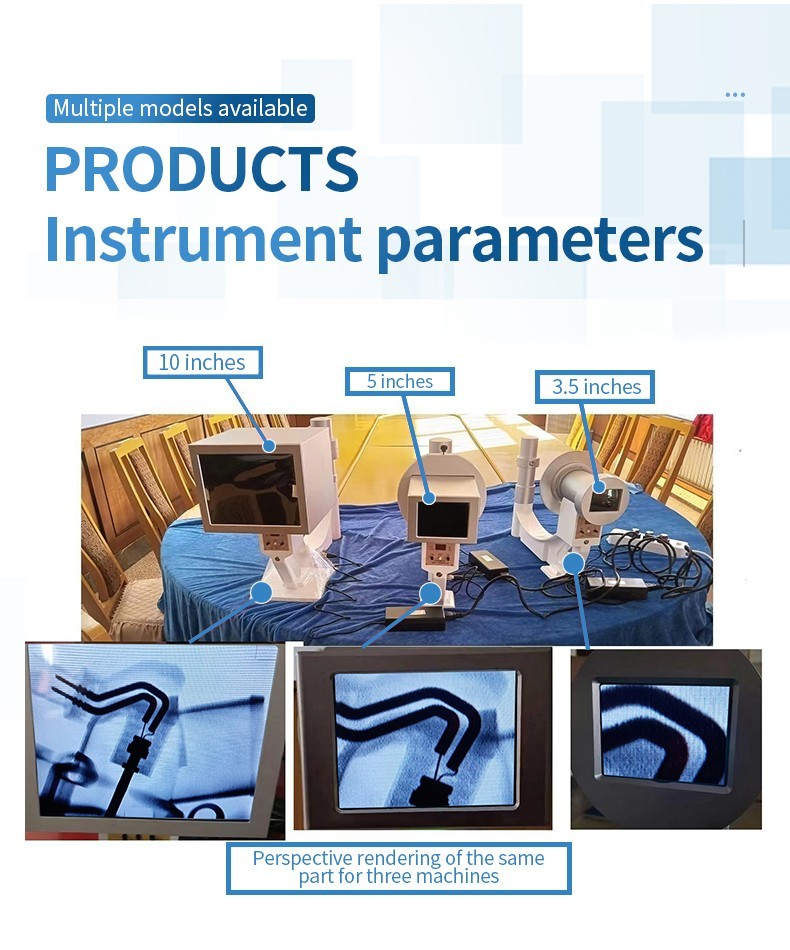

- A 3.5-inch display provides live viewing for the compact configuration.
Applications
Use for internal inspection of suitable industrial products and electronic components, laboratory demonstrations, engineering tasks and archaeological examination. Select exposure and positioning for the material and geometry. The specified observation thickness is a nominal model parameter and does not establish penetration capability for every material.

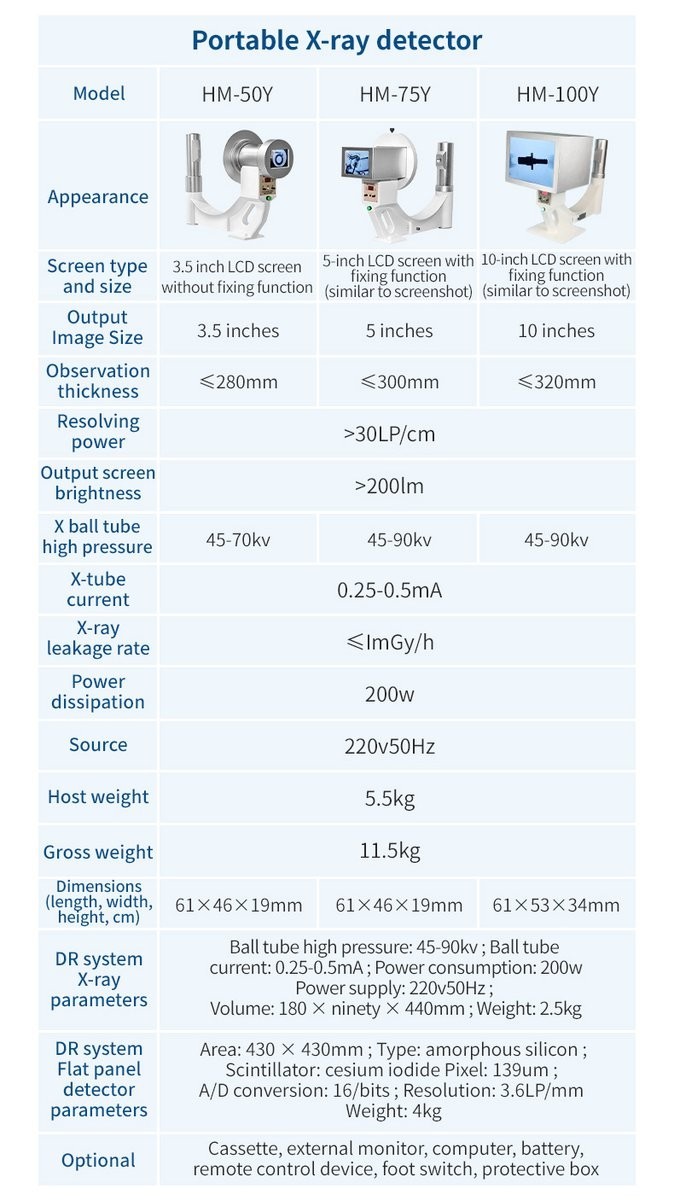

Technical Specifications
| Parameter | Specification |
|---|---|
| Imaging principle | CCD-based real-time X-ray imaging |
| Display | 3.5 inches |
| Image freeze | Not available |
| Specified observation thickness | ≤280 mm; material-dependent image quality |
| Current stated in product description | 0.5 mA |
| Power consumption | 200 W |
| Approximate host weight | 5.6 kg |
| Viewing conditions | Bright-room operation |

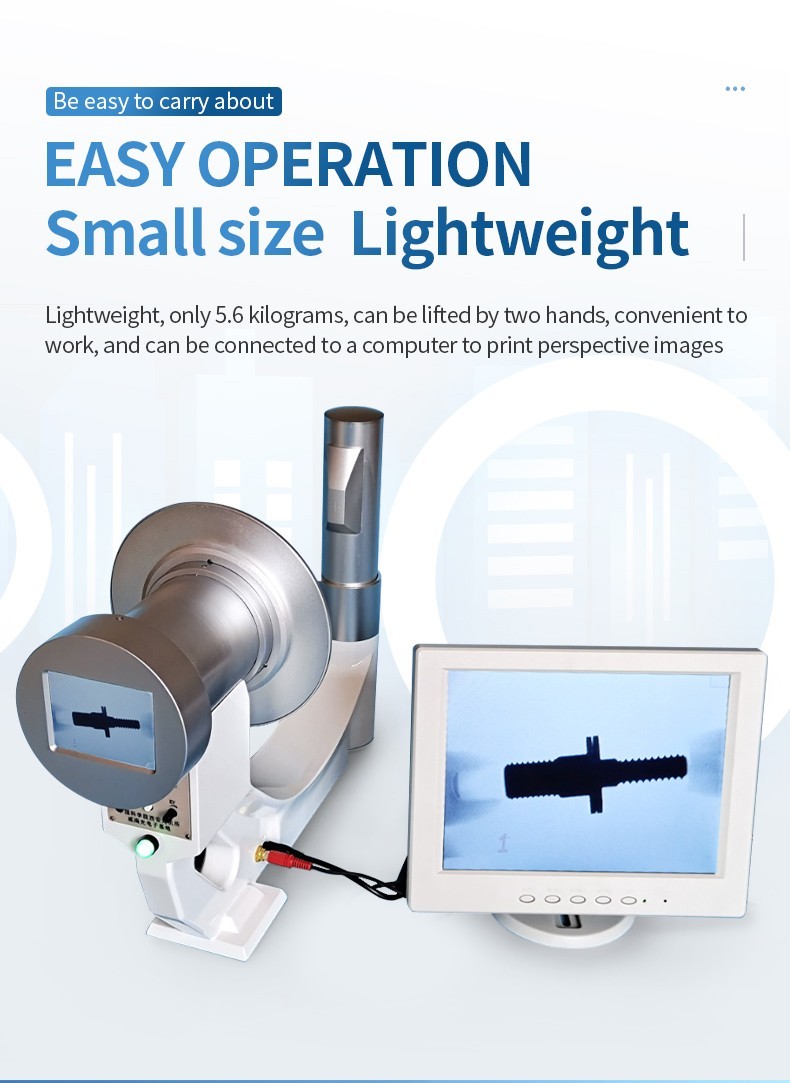

| Computer connection | Image printing supported |
Operation and Selection
Use a properly grounded supply and follow the operating manual and applicable radiation-protection requirements. Only trained personnel should operate the X-ray equipment with the required protection and access controls. Allow at least five seconds between operating cycles. Stop use if oil leakage or an abnormal image appears, and contact service personnel; do not dismantle the high-voltage assembly.
Product Enquiries
Tell our sales representative your sample material, target inspection or analytical task and configuration requirements for product enquiries and coordination of service requests.
Sales Contact: Kyra
Email: Kyra@hmdzkj.cn
Tel / WhatsApp / WeChat: +86 13792642016
